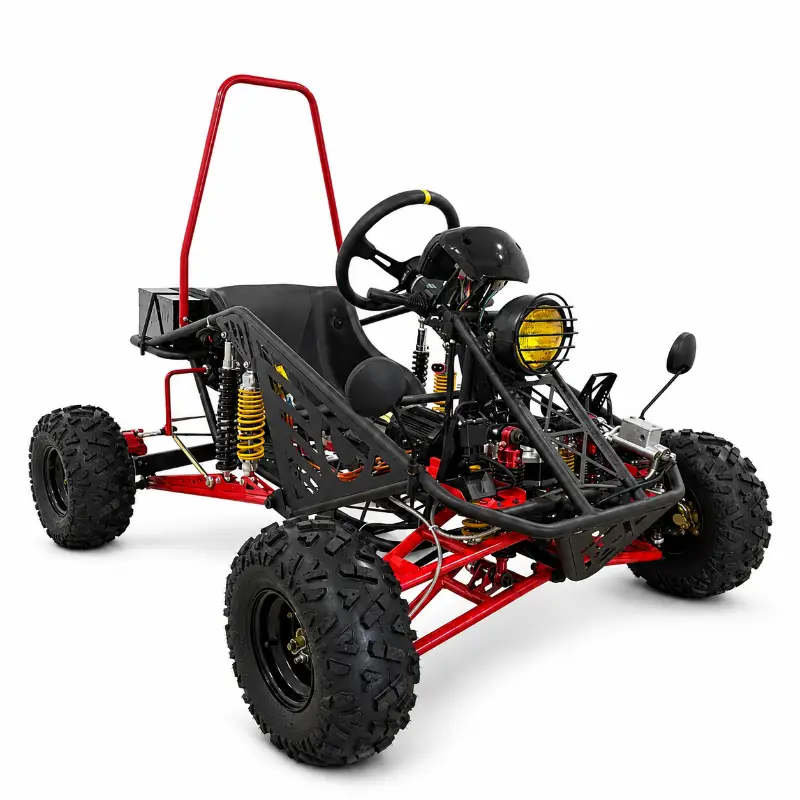

Built by Jindifan Technology, the All-Terrain Suspension Kart combines practical electric power with a strong frame and outdoor-focused design for recreational and commercial applications.
Unlike a kart designed mainly for smooth tracks, this model is built around changing outdoor surfaces.
You might start on a hard path, move onto grass, cross gravel, and continue onto a dirt trail. The kart's suspension, tires, steering, and electric drivetrain are designed to work together as the ground changes.

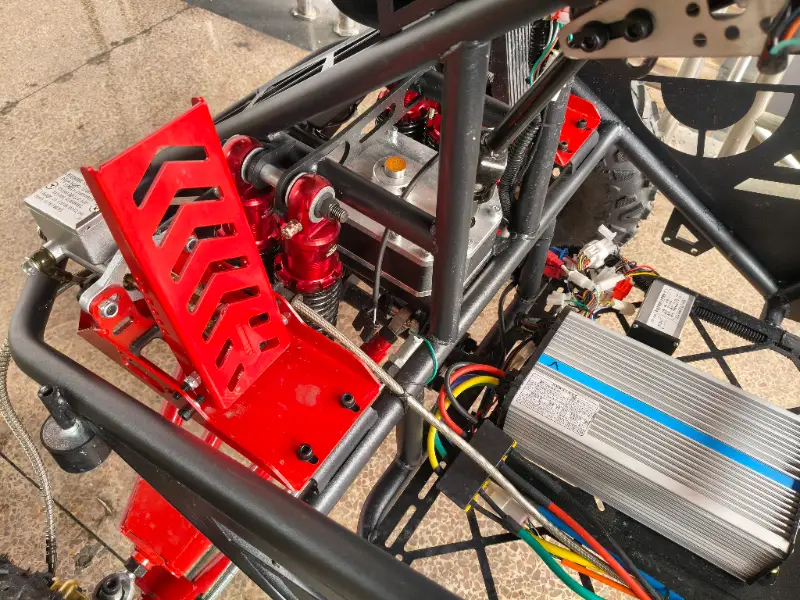

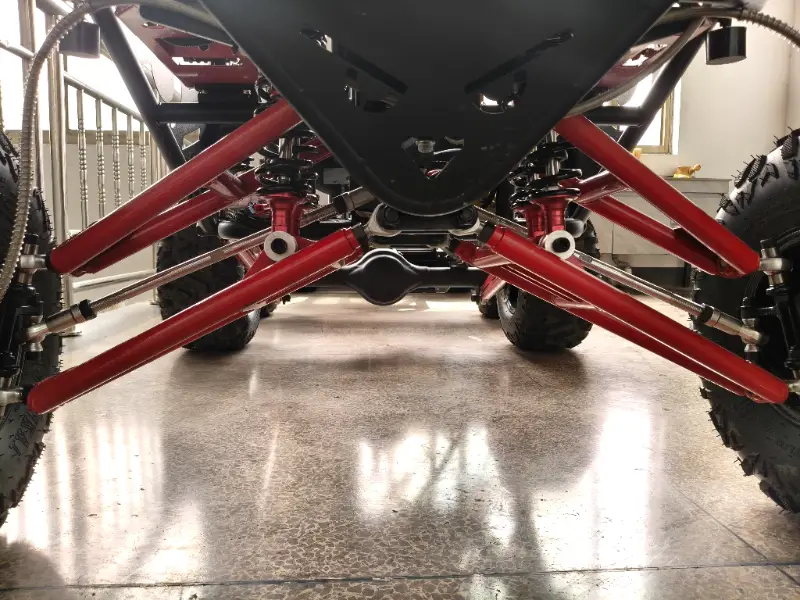

Outdoor terrain is rarely the same from beginning to end. The four front and four rear shock absorbers help reduce the impact of bumps, while the independent front suspension allows the front wheels to respond better to uneven ground.
The long travel steering and large off-road tires add to the overall control, helping the kart feel more comfortable when the surface becomes rough.
The All-Terrain Suspension Kart can be used on many suitable outdoor surfaces and in different recreational locations.
The off-road tires provide suitable ground contact for recreational driving on grass and dirt.
The suspension helps reduce the effect of small bumps and uneven sections when driving on gravel or compacted trails.
The kart can handle suitable muddy and uneven surfaces, although very deep mud or extremely soft ground may reduce traction.
It can be used for recreational riding around suitable farms, ranches, countryside properties, private trails, and outdoor leisure areas.
Different terrain calls for different driving speeds. The kart gives the driver Low, Medium, and High speed modes, allowing the rider to choose a suitable level for the conditions.
Reverse is also included, making it easier to turn around or move out of tighter areas.

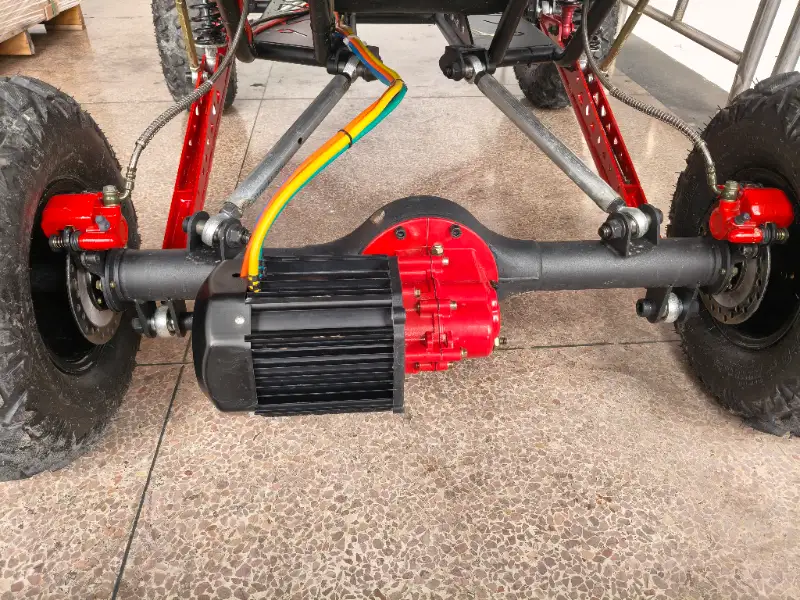

The 72V 3000W brushless motor and gearbox transmission provides responsive electric power, with a top speed of up to 60 km/h.
| Item | Specification | Item | Specification |
| Motor | 72V 3000W Brushless Motor | Battery | 72V 40Ah |
| Top Speed | Up to 60 km/h | Speed Modes | Low / Medium / High + Reverse |
| Controller | FarDriver 72450 Controller | Drive System | Gearbox Transmission |
| Recommended Age | 16+ | Recommended Rider Height | 4.59–6.56 ft |
| Max Load | 440 lb / 200 kg | Vehicle Weight | 150 kg / 330 lb |
| Front Axle | Independent Suspension | Rear Axle | Fixed Rear Bracket |
| Tires | 19 × 7.00-8 Front / 18 × 9.50-8 Rear Off-Road Tires | Lighting | Vintage LED Headlight |

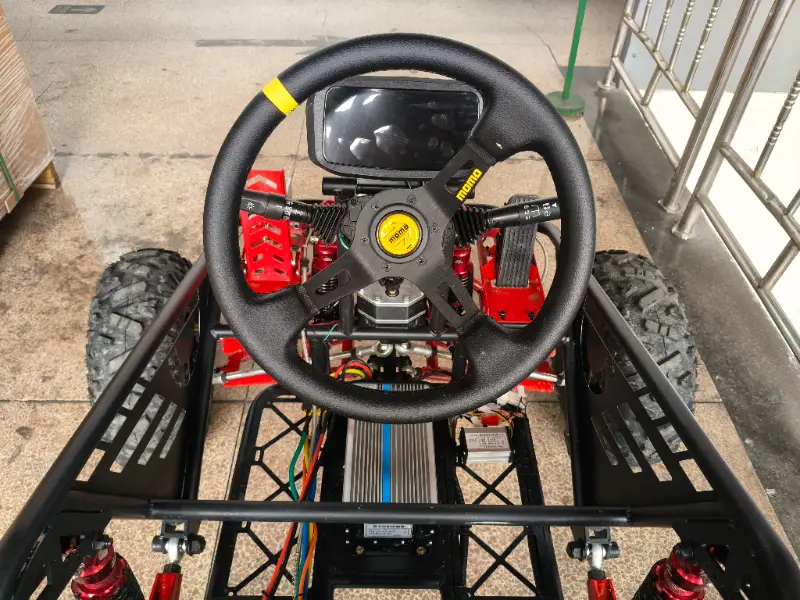

| Steering Wheel | Quick-Release Steering Wheel | Steering System | Long-Travel Steering System |
| Frame Material | Steel Tube Frame | Body Color | Black + Red |
| Vehicle Dimensions | 170 × 125 × 140 cm / 67 × 49 × 55 in | Frame Width | 70 cm / 27 in |
| Foot Pedal to Seat Base Space | 90 cm / 35 in | Height to Steering Wheel | 97 cm / 38 in |
| Control Method | Foot Throttle + Brake Pedal | Shock Absorbers | 4 Front + 4 Rear, 8 Total |
| Brakes | Front & Rear Dual Hydraulic Brakes, 4 Brakes Total | Brake Function | Brake Cut-Off + Anti-Rollback / Hill-Hold |
| Charger Voltage | 110V–240V | Charger Type | Fast Charger |
| Charging Time | Approximately 2.7 Hours | Battery Life | Approx. 3,000 Charge Cycles or 3–5 Years |
| Reverse | Yes | Optional Accessories | Protective Cage & Other Accessories |
The kart uses 19 × 7.00-8 front tires and 18 × 9.50-8 rear tires. Their large off-road design helps provide suitable grip and ground contact on different outdoor surfaces.

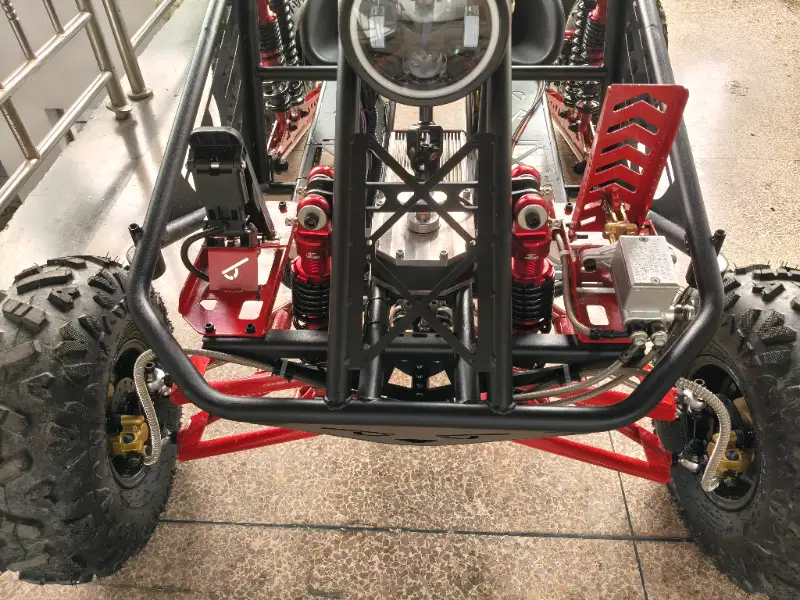

The eight-shock suspension works with the tires and independent front suspension to help the kart deal with bumps and changes in the ground.
If a project requires different tires, customized wheels and tires may be available depending on the intended application.
The All-Terrain Suspension Kart can be considered for a range of recreational and commercial applications:
·Private outdoor properties
·Ranches and farms
·Countryside trails
·Camping areas
·Outdoor adventure parks
·Resorts and leisure facilities
·Recreational rental businesses
·Private recreational trails
·Outdoor events and activities
The actual riding area should always be suitable for the vehicle and comply with local requirements.
Different outdoor projects may require different equipment. Optional accessories can include:
·Protective cage / roll cage
·Additional lighting
·Customized wheels and tires
·Application-specific accessories
·Other project-based configurations
For commercial orders, customers can discuss their requirements with our sales and engineering team before production.
Regular checks can help keep the kart working properly, especially when it is used frequently on dirt, gravel, mud, or rough ground.
Before riding, it is recommended to check the tires, brakes, steering, battery, suspension, and visible connections.
After riding in mud or dirt, cleaning the frame, wheels, and suspension can help prevent unnecessary buildup and wear.
Jindifan Technology can also provide spare parts and technical support for long-term maintenance.
Jindifan Technology develops and manufactures electric recreational vehicles with experience in vehicle frames, electrical systems, assembly, and quality control.
We provide factory-direct supply, customization, spare parts, and after-sales support for both individual customers and commercial projects.
Whether you need a standard vehicle or a configuration for a specific outdoor application, our team can work with you to find a suitable setup.
The All-Terrain Suspension Kart is designed for recreational use across different outdoor surfaces, such as dirt, grass, gravel, mud, compacted ground, and uneven terrain. Its suspension, off-road tires, and long-travel steering system help the kart adapt to changing outdoor conditions.
Yes. The kart is designed for situations where the riding surface changes from one type of ground to another. The suspension, tires, and steering system work together to help provide more comfortable and controlled driving across different outdoor areas.
The kart is suitable for recreational use in private properties, ranches, farms, countryside trails, camping areas, outdoor adventure parks, resorts, leisure facilities, rental businesses, and other suitable outdoor locations.
Yes. The kart features Low, Medium, and High speed modes, plus Reverse. Different speed settings allow riders to choose a suitable driving level based on the terrain and riding conditions.
The kart uses four front and four rear shock absorbers, independent front suspension, long-travel steering, and off-road tires. These components work together to help reduce the impact of bumps and improve stability on uneven surfaces.
Yes. Depending on project requirements, customization options may include protective cages, additional lighting, customized wheels and tires, outdoor equipment, and other application-specific configurations.
